6.0L Powerstroke Top End Gasket Set, 2003-2007
SKU: 60P-GS-018-1
- Refundable Core Charge: "Cores" are used parts that can be used in re-manufacture. The Refundable Core Charge is added to your order and when you send your “core” in, we assess the value and will refund up to the Refundable Core Charge amount. +
- Regular Price Plus Core: $349.00 USD

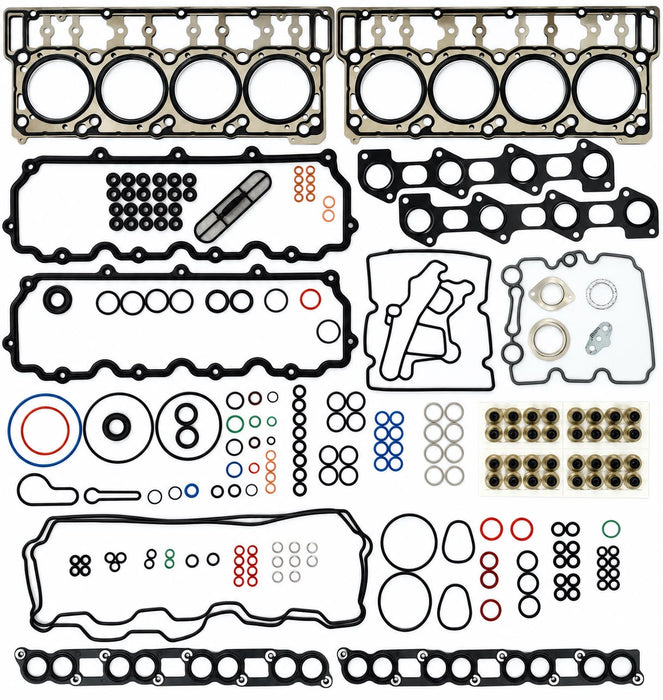

Complete top end gasket set for the 2003-2007 Ford 6.0L Powerstroke. Includes the MLS head gaskets, intake and exhaust manifold gaskets, valve cover gaskets, valve stem seals, and the o-rings, sealing rings, washers and hardware needed to put the top end back together.
Why .010" thicker head gaskets? Every set comes standard with MLS head gaskets .010" thicker than stock, on purpose. The extra thickness improves head gasket sealing and helps correct for block or cylinder head machining, since factory heads have often been resurfaced more than once. Even on an engine that's never been machined, factory 6.0 Power Strokes run very close piston-to-valve clearance, so the extra .010" adds clearance for a safer assembly.
Fitment: 2003-2007 Ford 6.0L Powerstroke. Available in 18mm and 20mm head dowel versions.
What's included (211 pieces):
Head & manifold gaskets
- MLS cylinder head gasket, 18mm dowel (x2)
- Intake manifold gasket (x2)
- Exhaust manifold gasket (x2)
Valve train & valve covers
- Valve stem seal (x32)
- Valve cover gasket, rubber-on-carrier style (x2)
- Valve cover gasket, perimeter seal style (x2)
- Rubber bushing (x22)
Sets of 8 (eight-of-each parts)
- O-ring, blue (x8)
- O-ring, black (x8)
- O-ring, grey (x8)
- O-ring, red (x8)
- Rubber sealing ring, black (x8)
- Steel spring clip (x8)
- Star washer (x8)
Molded gaskets
- Molded rubber gasket, black (x1)
- Mesh screen gasket (x1)
- Molded rubber gasket, blue (x1)
- Composite plate gasket (x1)
- Molded rubber gasket, black (loop) (x1)
- Molded rubber gasket, black (dog-bone) (x1)
- Rubber gasket, black (round) (x2)
- Rubber gasket, black (oval) (x2)
- Rubber gasket, rectangular (x1)
Exhaust & metal gaskets
- Metal 2-bolt flange gasket (x1)
- Metal ring gasket (x1)
- Graphite ring gasket (x1)
O-rings
- O-ring, blue (x3)
- O-ring, black (x24)
- O-ring, red (x5)
- O-ring, green (x7)
- O-ring, brown (x6)
Flat & rubber sealing rings
- Rubber sealing ring (x1)
- Flat sealing ring (x4)
- Flat sealing ring, black (x1)
- Flat sealing ring, brown (x1)
- Rubber sealing ring, black (x15)
Washers & hardware
- Copper sealing washer (x6)
- Steel tube (x4)
