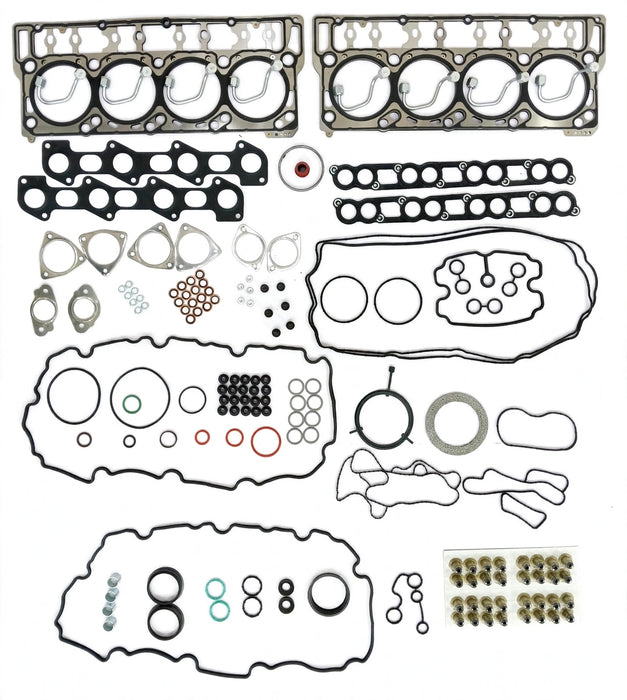

Complete top end gasket set for the 2008-2010 Ford 6.4L Powerstroke. Includes the head gaskets, intake and exhaust manifold gaskets, valve cover gaskets, valve stem seals, exhaust connection gaskets, and the o-rings, washers and hardware needed to put the top end back together.

Why .010" thicker head gaskets? Every set comes standard with MLS head gaskets .010" thicker than stock, on purpose. The extra thickness improves head gasket sealing and helps correct for block or cylinder head machining, since factory heads have often been resurfaced more than once. Even on an engine that's never been machined, factory 6.4 Power Strokes run very close piston-to-valve clearance, so the extra .010" adds clearance for a safer assembly.

Fitment: 2008-2010 Ford 6.4L Powerstroke.

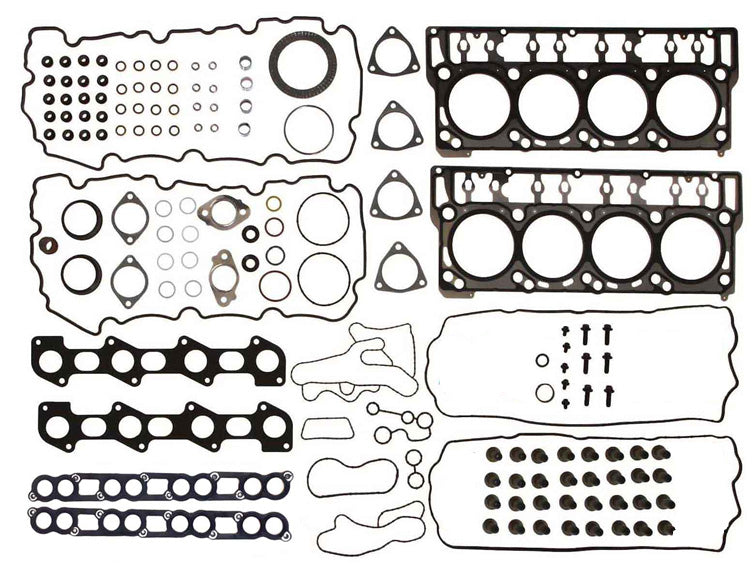

What's included (158 pieces):

Head & manifold gaskets

• Cylinder head gasket (x2)
• Intake manifold gasket (x2)
• Exhaust manifold gasket (x2)

Valve train & valve covers

• Valve stem seal (x32)
• Valve cover gasket (x2)
• Valve cover gasket, single (x1)
• Rubber isolator bushing (x20)

Seals

• Rubber/metal seal, large (x1)
• Rubber/metal seal (x2)
• Oil seal, black (x2)

Exhaust & metal gaskets

• Steel wire-mesh ring gasket (x1)
• Metal ring gasket with tab (x1)
• Metal 2-bolt flange gasket (x4)
• Metal 3-bolt flange gasket (x4)
• Graphite ring gasket (x1)

Molded gaskets

• Rubber gasket, black (round) (x2)
• Figure-8 rubber gasket (x3)
• Molded rubber gasket (x1)
• Molded rubber gasket, black (x4)
• Molded rubber gasket, black (multi-port) (x1)

O-rings & sealing rings

• O-ring, grey (x8)
• O-ring, black (x4)
• O-ring, red (x3)
• O-ring, green (x1)
• O-ring, brown (x1)
• Rubber sealing ring, green (x2)
• Rubber sealing ring, black (x2)
• Flat sealing ring, brown (x1)

Washers & hardware

• Copper sealing washer (x16)
• Star washer (x8)
• Flange bolt (x6)
• Nut (x5)
• Steel bushing (x4)
• Steel tube with fittings (x8)
• Red-coated metal bushing (x1)
