Genuine Goerend Transmission part #D-PAN-4748-LOGO.

Goerend Difference:
Constructed of lightweight cast-aluminum
Efficient heat dissipation and durability
Holds approximately 2.5 quarts more fluid than the OE version
Patented sloped floor design
Results in 100% fluid drainage
Maintains flat bottom for easy installation
Magnetic drain plug
Eliminates debris from circulating throughout transmission
Uses a 1" socket for easy removal
Designed not to strip
Copper sealing ring
Provides a leak-free seal
Billet steel lowering block
Positions filter in optimum position

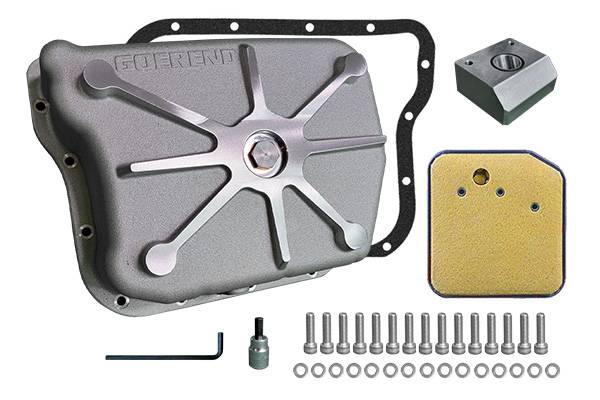

What's in the box?
(1) lightweight cast-aluminum transmission pan
(1) duraprene pan gasket
(1) temperature sender port plug
(1) 3/16" Allen wrench
(1) 1/4" Allen head driver socket
(1) lowering block
(1) lowering block O-ring (pre-installed)
(1) filter
(1) magnetic drain plug (pre-installed)
(1) copper sealing ring (pre-installed)
(2) lowering block filter screws (pre-installed)
(15) bolts
(15) washers
Machining Process:
Goerend pans are machined using three operations performed by in-house Mazak CNC machines.
Operation #1 includes drilling bolt holes on bottom side of pan
Operation #2 includes machining surface of pan to create leak-proof seal against pan gasket
Operation #3 includes drilling and tapping hole for temp sender and drain plug
Torque Specifications:
Lowering block screws: 35 in-lb.
Filter screws: 35 in-lb.
Drain plug: 240 in-lb.
Pan bolts: 120 in-lb.
