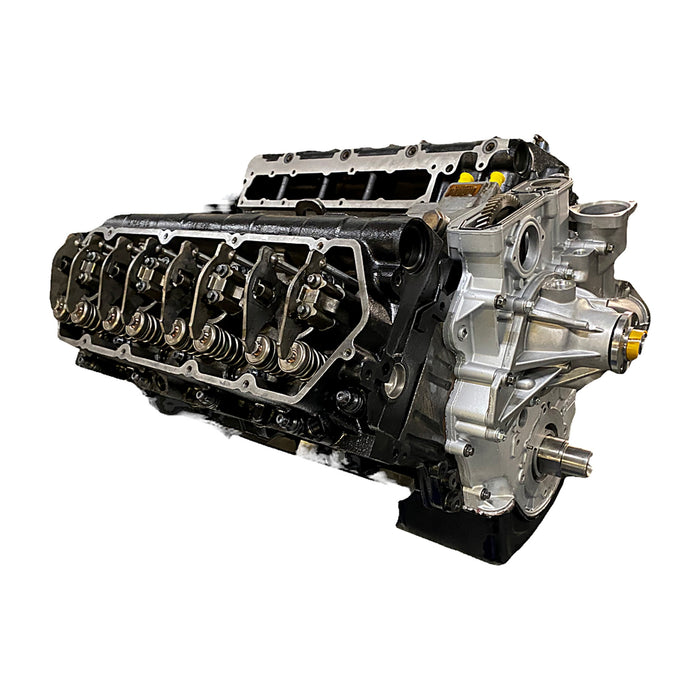

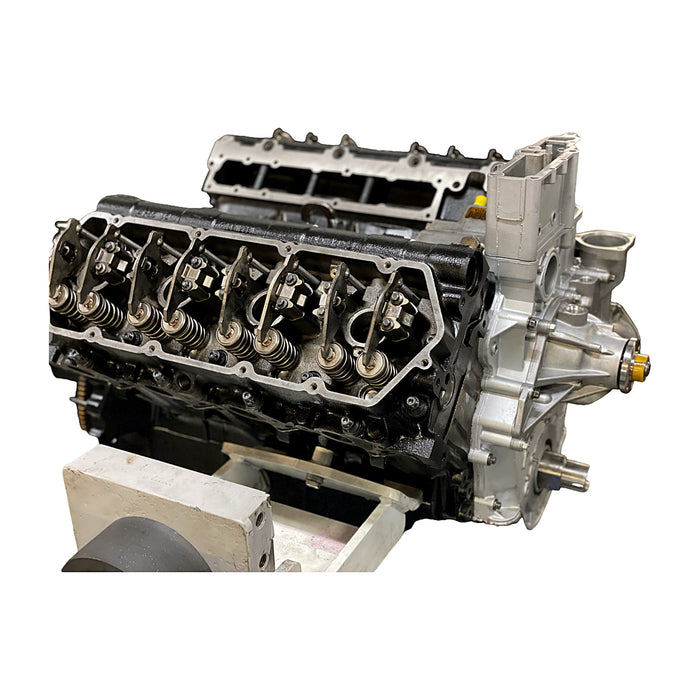

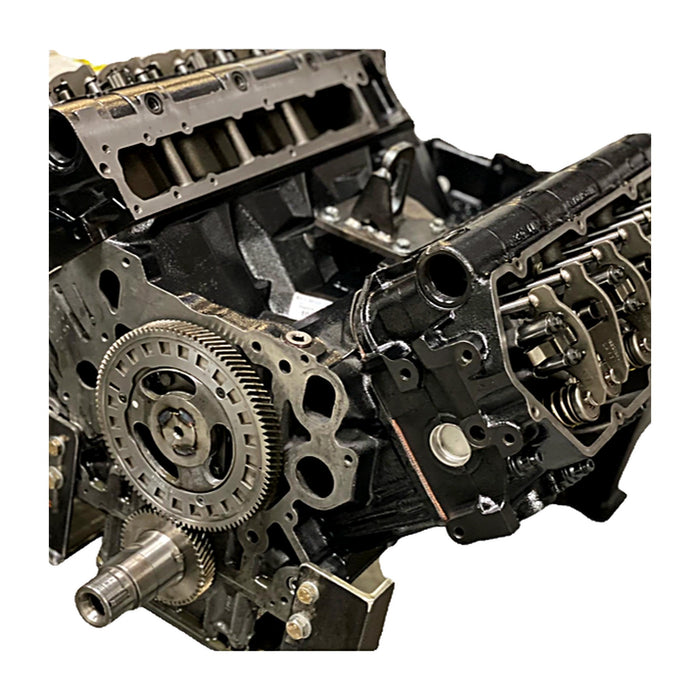

KDD 7.3 Powerstroke Longblock
**Lead Time Applies, Please Contact Us For More Details**
KDD Is proud to present our 7.3 Powerstroke Longblock engine packages. Add performance and reliability to your Ford truck with our proven combination of state of the art blueprint machine work, high quality components and carefully hand assembled engines, tested on our ETS engine validation machine.
Check out our Engine Testing System HERE
Like all of our other award winning engine packages, our 7.3 engines start with a thorough disassembly and inspection process to qualify all cores to make sure they're up to our standards. After cleaning, blocks are pressure tested to ensure no "pinholes" or "hairline cracks" or other defects make it any further in the process. All bolt holes are carefully cleaned and inspected to ensure no rusted or damaged threads or bolt bosses make it to our customers. Block machine work is performed in our brand new state of the art RMC V40 CNC machine, which completes the blueprint boring, decking and chamfering to reset all of the bore centerlines and head gasket surface back to factory geometry. Blocks are then treated to a CNC torque plate hone in our new Sunnen SV-15 cylinder hone, where cylinder bores are honed within .0001" tolerance, as well as setting proper cylinder surface finish (RK, RVK, RPK, Mr1, Mr2, measured with state of the art Mitotoyo Profilometer) critical for proper piston ring seal, break-in and adequate oil retention and ring rotation for years of reliable service. All blocks are also align honed to ensure the main housing bore is straight and true, with proper bearing clearance.
All KDD rotating assemblies are balanced on our state of the art CWT 5500 balancing machine, to ensure proper balancing for the application, followed by micro-polishing and checked for straightness. Genuine Ford rods are checked for straightness, new pin bushings installed, and optional ARP rod bolts available. Optional USA made forged steel Carillo connecting rods. or Brian Crower forged steel rods.
All 7.3 engines receive:
- KDD's award winning cylinder heads- 100% new USA made valves and springs go into every single head, after being pressure tested, heads are CNC machined/resurfaced on our RMC V30 CNC machine, new valve guides and seats, upgraded stainless steel injector cups come standard. Our proprietary multi-angle valve seat profile is machined on our Serdi 100 seat and guide machine - the industry standard for cylinder head machining.
- New USA made camshaft and lifters
- Chromoly pushrods
- Genuine Ford rocker arms
- Performance camshaft and valve springs available for any application, from max effort towing to all out competition engines
- ARP Head Studs
- KDD Billet Camshaft
** Shown with optional front cover, available for additional cost.
**Camshaft gear is tig welded to the camshaft to guarantee no failures even under the most demanding situations.
**Please note that the 7.3 long block does not come with front cover, rear cover, upper oil pan, lower oil pan, oil cooler, or damper/flex plate. These parts are all available as optional add ons!
All KDD engines come with a 3 year/unlimited mile warranty against defects in materials and workmanship.
**Shipping price at checkout is for freight shipping to a business in a commercial area. Shipping to a residence or residential area will result in extra fees charged to the receiver. Please call the office 252-725-1222 to ship this item to a residence or with any questions**
